SageVue allows the importing and management of layouts created with Tesira software. This section gives information about importing and configuring Tesira layouts in SageVue.
The Tesira Layout Library will list all layouts currently available via SageVue. For layouts that have already been imported, users have the option to Download, Edit, Delete and Configure the layout.

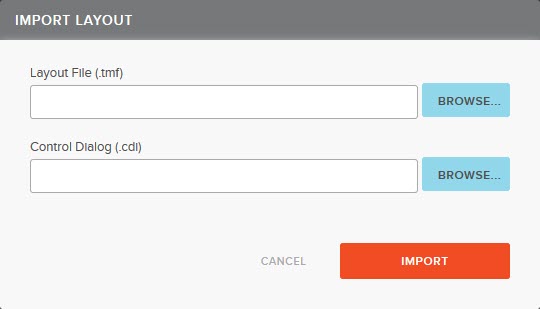

Click Import to download a new layout and navigate to the file location. User's may select the .tmf and .cdi or only the .tmf. When selecting both files, a .zip file will be created. Files are downloaded to the SageVue server once imported. Once imported, the layout files will be shown in the Tesira layout library as in the image above.
Clicking the
button will export
the layout to the user's PC.
Click the
logo to delete a layout from the list.

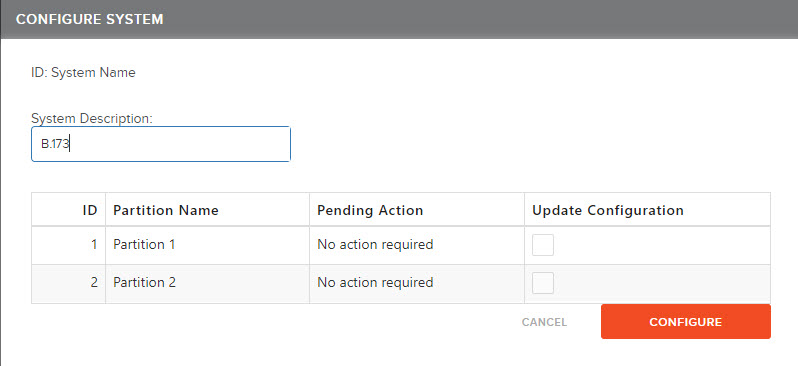

To configure the Tesira system, click the
symbol
in the Tesira layout library next to the layout to apply. The following
screen will give the user information about the layout, allow them to
change the System Description name and gives information about the ID,
partition name and if there are any pending actions. Users may select
individual partitions to update. Click configure to apply the layout.
. The user may modify the .tmf after configuration, and the updated .tmf
will be saved in the layout library.
