Network

This page allows authorized users to configure the network settings and network adapters SageVue uses for device discovery on the gateway machine.

Device Type Selection

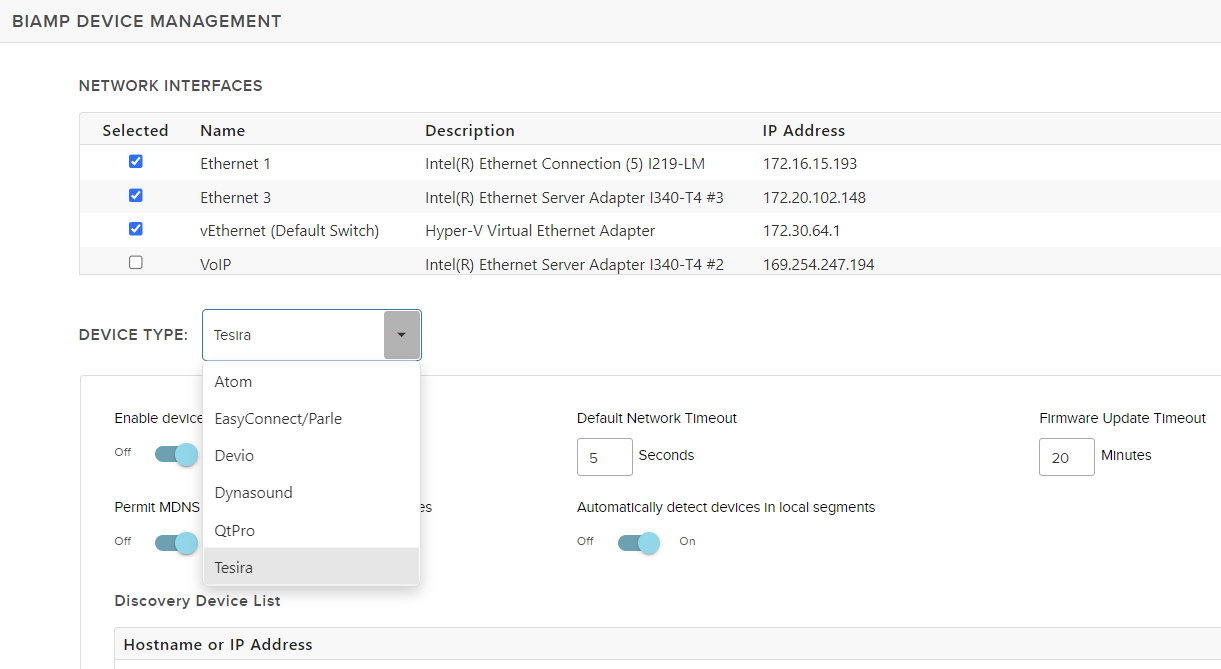

Use the Device Type dropdown menu to select Tesira, Devio, Atom, Dynasound, EasyConnect/Parlé, or QtPRO.

Network interfaces may be enabled by checking the box next to the name of each interface.

Tesira, Devio, Crowd Mics ATOM, Dynasound, EasyConnect/Parlé, and QtPro devices may be configured by choosing the appropriate tab below Network Interfaces.

Tesira Device Tab

Device Discovery and Unqualified Host Names

Device discovery and MDNS resolution of unqualified hostnames may be turned on or using the switches.

Auto Detection in Local Segments

Automatic detection of devices in local segments may be set on or off from the following switch:

Additional Tesira Settings

• Default network
• Firmware update timeouts
• Default network timeouts

Deleting Hostnames and IP Addresses

Delete hostnames and IP addresses on the Tesira Tab Discovery Device List  by clicking the trash can icon associated with each item row. Users will be prompted to confirm the command.

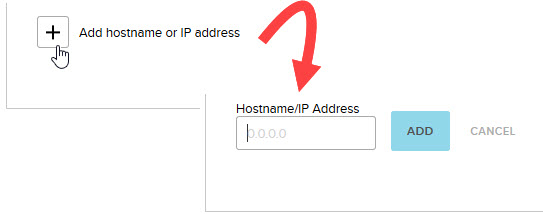

Manually Adding List Items

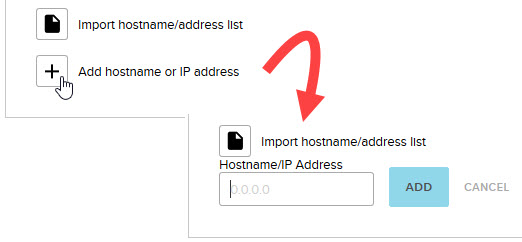

• Click the Add hostname or IP address + button
• Enter the hostname or IP address

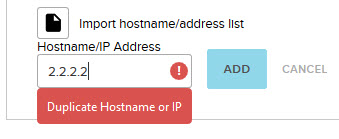

  • Users will be prompted if the hostname or IP is duplicated.
• Click Add to Add the new list item.
  • Cancel aborts the operation.

Devio Device Tab

Operations on the Devio Tab

• Devio device discovery can be turned on or off.
• Devio authentication ports and passwords may also be added to access Devio device web pages.
• IP addresses (devices) may be added individually or imported in bulk from a .CSV file.

Deleting Hostnames and IP Addresses

Click the trash can icon to delete associated hostnames and IP addresses from the Discovery Device List. Users will be prompted to confirm the command.

Applying Changes

• Click Update to apply changes.
• Clicking Cancel aborts the operation.

Manual Authentications

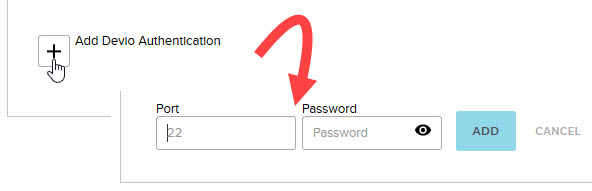

• Click the Add Devio Authentication + button
• Enter the port
• Enter a password
• Click Add to add the authentication
  • Clicking Cancel aborts the operation.

Crowd Mics ATOM Tab

Operations on the Tab

Users can enable device discovery and add authentication credentials on the ATOM tab.

Applying Changes

• Click Update to apply changes
• Clicking Cancel aborts the operation

Deleting Authentications

Delete authentications by clicking the trash can icon. Users will be prompted to confirm the command.

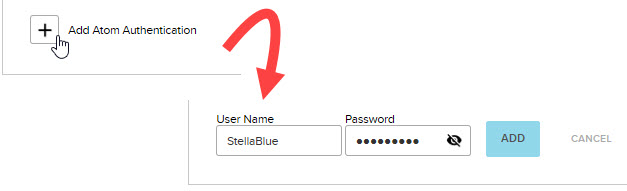

Manual Authentications

• Click the Add ATOM Authentication + button
• Enter User Name
• Enter the associated password
• Click Add to add the authentication
  • Clicking Cancel aborts the operation.

Dynasound Device Tab

Operations on the Tab

• Turn device discovery on or off
• Set the default network timeout
•  IP Addresses (devices) may be added individually or imported in bulk via a .CSV file

Discovery List Device Visibility

The Discovery Device List shows both Present and Hidden devices as well as the IP Address and serial numbers of these devices. Devices in the hidden category will not show up on the main device page.

Clicking the refresh icon shows the device on the main device page and moves it to the "Present" category of the Discovery Device List.

Deleting Addresses

Delete an IP address by clicking the trash can icon. Users will be prompted to confirm the command.

Importing IP Address Lists

To import an IP Address list from a .CSV file.

• Click on the Import address list icon.

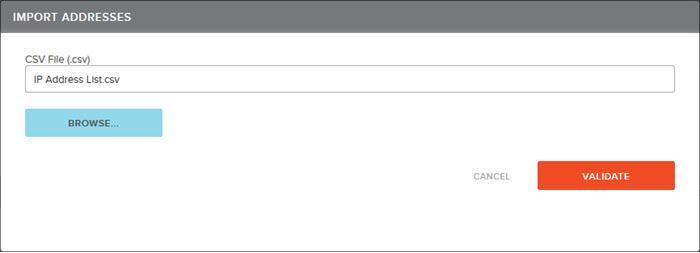

• Browse to an appropriate file and click VALIDATE.

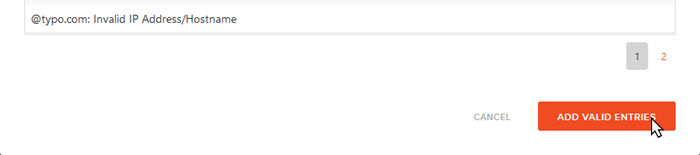

Note: The file will be validated and any failed entries listed, if present. If errors are present, the user may choose to add only the valid entries to the Device Discovery List by clicking ADD VALID ENTRIES.

Importing Individual IP Addresses

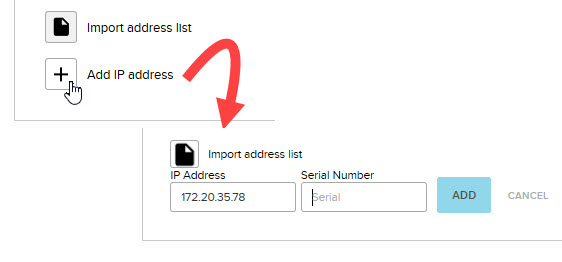

• To add an individual IP address, click the Add IP Address + icon.

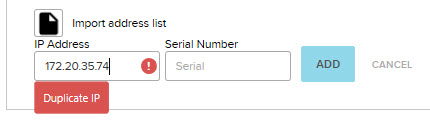

The user will be alerted if the IP address or serial number entered is already in the Discovery Device List.

EasyConnect / Parlé Device Tab

Operations on the Tab

• Discovery List Device Visibility
• Deleting Addresses
• Importing IP Address Lists
• Importing Individual IP Addresses

Discovery List Device Visibility

The Discovery Device List shows both Present and Hidden devices as well as the IP Address and serial numbers of these devices. Devices in the hidden category will not show up on the main device page.

Clicking the refresh icon shows the device on the main device page and moves it to the "Present" category of the Discover Device List.

Deleting Addresses

Delete addresses by clicking the trash can icon. Users will be prompted to confirm the command.

Importing IP Address Lists

To import an IP Address list from a .CSV file.

1. Click on the Import address list icon.

1. Browse to an appropriate file and click VALIDATE

Note: The file will be validated and any fail entries listed, if present. If errors are present, the user many choose to add only the valid entries to the Device Discovery List by clicking ADD VALID ENTRIES.

Importing Individual Hostname or IP Addresses

• To add an individual Hostname or IP address, fill out the field and click Add

The user will be alerted if the hostname or IP address entered is already in the Discovery Device List.

QtPro Tab

Operations on the QT Tab

• Device discovery can be turned on or off.
• Hostnames or IP Addresses (devices) may be added individually or imported in bulk via a .CSV file.

Discovery List

The Discovery Device List will show the hostname or IP address as set on the device after they have been added

Deleting Devices

Devices may be deleted by clicking the icon in the Device Discovery List. Users will be prompted to confirm this command.

Adding Hostname/Addresses as Lists

Users may import a Hostname/IP Address list as a .CSV file by clicking the Import address list icon:

Browse to an appropriate file and click VALIDATE.

The file will be validated and any failed entries listed. If errors are present, the user may choose to add only the valid entries to the Device Discovery List by clicking the ADD VALID ENTRIES button:

Adding an Individual Hostname or IP Address

• Click Add hostname or IP address + button

• Enter a hostname or IP address
  • An alert will appear if the entered hostname or IP address duplicates one already present on the Discovery Device List.
